DN25 STS Prepaid Multi jet Water Meter With Stepped Price Setting Function

Brand Name : Stron

Model Number : STW36-A

Certification : STS Certificated

Place of Origin : China

MOQ : 100

Price : USD 45-65/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000pcs/month

Delivery Time : 20-45 days

Packaging Details : Cartons

Mode : Prepaid Mode

Type : Multi-jet

Standard : STS Standard

Material : Brass Body

Color : Blue,White

Size : DN15 DN20

Power supply : Lithium Battery

Installation : Horizonal

Dynamic range : R160

Protection class : IP68

Temperature : <50℃

Water pressure : MPA16(optional)

Certificate : ISO9001,ISO14001

Contact Now

IP68 Waterproof DN25 STS Prepaid Multi-jet Water Meter With Stepped Price Setting Function
The Multi-Jet prepaid water meter has IP68 waterproof, allowing to operate in harsh environments. The high accuracy can measure the water when it's dropping. The seal design make the battery and circuit board wrapped with epoxy resin and isolated from the air.It has a lithium battery inside, so the water meter have over 10 years’ data storage in absence of power.

The Step Tariff function can make it possible for water company to set different water price with the water consuption increases. Admin can set 3 step price at most, and it's very simple to operate.

Features
✽ Muti-jet Dry dial register construction
✽ Pre-programmable low credit warning
✽ Stepped tariffs available

Metrological Parameters of different size

Size DN15mm 1/2 DN20mm 3/4 DN25mm 1
Overload flow rate Q4 3.125 5 7.875
Permanent l flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.025 0.040 0.063
Minimum flow rate Q1 0.025 0.04 0.063
Ratio ”R” Q3/Q1 160 160 160
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Q2≦Q≦Q4 2% 2% 2%

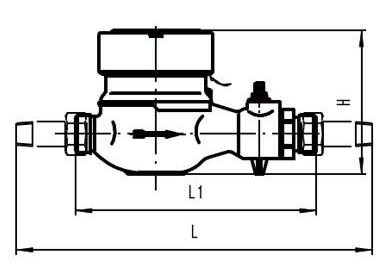

Meter Dimension
DN25 STS Prepaid Multi jet Water Meter With Stepped Price Setting Function

Size DN15 1/2” DN20 3/4 DN25 1”
Length(L) 165/190 190 225/260
Width(W) 99 99 103
Height(H) 104 106 114
Connecting Thread G3/4B G1B G1-1/4B

Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN.
Low credit alarm Alarm value can be set by inputting corresponding TOKEN.
Step Tariff Step Tariff can be set by inputting corresponding TOKEN.
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.

Step Tariff:
DN25 STS Prepaid Multi jet Water Meter With Stepped Price Setting Function
Information Inquiry:
DN25 STS Prepaid Multi jet Water Meter With Stepped Price Setting Function

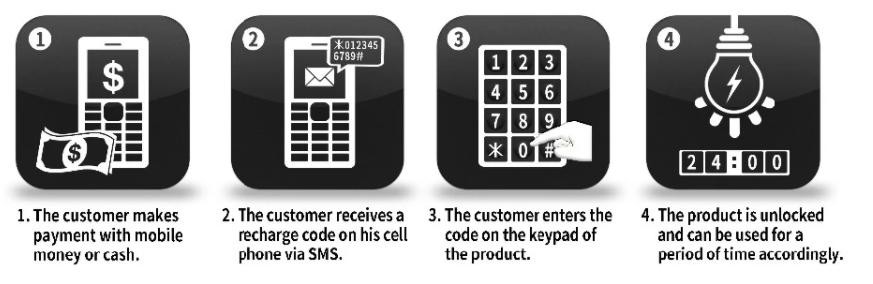

Vending Process

By Stronpay vending Software

Vending Software STS standard encryption web-based vending software
Recharge Token Printer Thermal Printer, Print TOKEN receipt
Handheld Vending Machine Vending APP in Android system include TOKEN printer
Language English/ French/ Arabic/ Portuguese


➯ Via local sales point or handheld mobile vending unit
DN25 STS Prepaid Multi jet Water Meter With Stepped Price Setting Function

➪ Via mobile phone
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.
DN25 STS Prepaid Multi jet Water Meter With Stepped Price Setting Function
